MC Jaw Crusher

The MACKORN MC Series crushers are based on a revolutionary modular,non-welded frame construction,offering owners the highest possible fatigue styrength,excellent reliability and numerous monting possibilities,Thanks to the accurately balanced structure,the MC Series jaws are easy and economical to install.Combined with special high-quality cast steel componets and durable wear parts,means exceptionally high crusher avalilability,cost-efficient crushing and low cost per ton.

High quality and reliability
word-class craftsmanship and material
Modular,non welded construction
Four equal size bearings that larger than those of most crusher of comparable size
Cast steel pitman and crusher frames
Single-piece cast steel frame bearing housings
Repair crusher construction

Outstanding performance
Efficient cavity designs
Long stroke,optimum speed
Small allowed crusher settings
The Right jaws and cheek plates for the widest range of applications

Low operating and installation costs
Easy to automate
Fast and safe wedge setting adjustments system
Protection plates behind the jaw plates
Rmper crusher mounting
Versatile integral motor base
Compact and service friendly flywheel guards
Custom feed chute
Automatic grease lubrication system

Used in a wide range of applications,both stationary and mobile
Aggregate
Minling(surface and underground)
Recycling(concrete,asphalt,etc)
Industrial(slag,anodes,etc)

Technical Parameters

Model	MC800	MC1000	MC1060	MC1080	MC1100	MC1200	MC1250	MC1300	MC1500	MC1600	MC2000
Feed opening width（mm）	800	1000	1060	1200	1100	1200	1250	1300	1400	1600	2000
Feed opening depth（mm）	510	760	700	830	850	870	950	1070	1200	1200	1500
Power（Kw）	75	110	110	132	160	160	160	160	200	250	400
Speed（rpm）	350	260	280	260	230	220	220	220		220	200
Weight*kg	7670	20060	14350	27600	25800	26200	41800	41500	51200	76500	121510
Capicity(t/h)	55-330	120-485	155-505	165-795	165-550	170-545	240-750	330-965	420-950	435-1150	630-1440

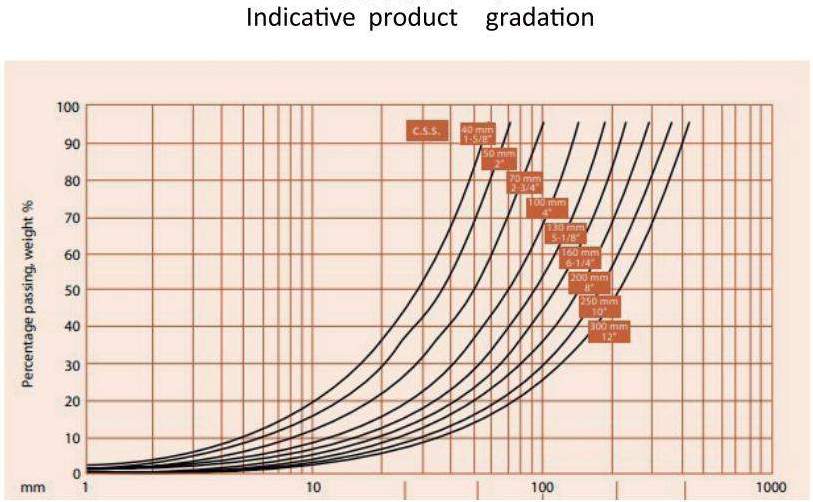

Product size（mm）	Closed side Setting（mm)	MC800	MC1000	MC960	MC1060	MC1160	MC1100	MC1200	MC1250	MC1400	MC1600	MC2000
Product size（mm）	Closed side Setting（mm)	Capacity Mtph（吨/小时）
0-60	40	55-75
0-75	50	80 - 90
0-90	60	85 - 120		115 - 150
0-105	70	110 - 145	145-205	135 - 175	155 - 195	160 - 215	230 -300	185-245
0-120	80	125 - 165	165 - 220	155 - 205	170 - 225	180 - 245	265 -345	205-270
0-135	90	145 - 190	180 - 240	175 - 230	195 - 255	210 - 270	290 - 380	230-300
0-150	100	160 - 210	210 - 275	195 - 255	215 - 280	230- 300	320- 420	350-325	280- 375
0-185	125	205 - 270	260 - 340	245 - 320	270 - 360	290 - 380	385- 505	305-400	450 - 585	380- 495
0-225	150	245 - 320	310 - 400	299 - 385	330 - 430	345 - 450	455- 595	360-470	400 - 530	450 - 580	510 - 670
0-260	175	285 - 375	365 - 475	345- 450	385 - 505	400 -520	525- 685	420--545	460 - 600	510- 670	590 - 770	755 -985
0-300	200		415-540		440 - 575	450 - 595	595-775	475-620	520- 680	580 - 760	670-870	850 - 1100
0-340	225								580- 765	650 - 845	740-970	940 - 1220
0-375	250								640 -840	720 - 940	820-1060	1030 - 1340
0-410	275										895-1160	1125 - 1460
0-450	300										970-1270	1220- 1580

		MC80	MC96	MC100	MC110	MC125	MC140	MC145	MC160	MC200
A	mm	800	930	1000	1100	1250	1400	1400	1600	2000
B	mm	510	580	760	850	950	1070	1100	1200	1500
C	mm	1526	1755	2420	2385	2800	3010	3110	3700	4040
D	mm	2577	2880	3670	3770	4100	4400	4600	5900	6700
D	mm	1990	1610	2890	2890	3440	3950	4100	4580	4950
F	mm	1750	1460	2490	2750	2980	3140	3410	3750	4465
G	mm	1200	755	1700	1940	2100	2260	2430	2650	2800
H	mm	2100	2500	2965	2820	3470	3755	2855	4280	4870
I	mm	625	465	775	580	980	1050	1050	1300	1400
Basic crusher weight	Kg	7670	9759	20060	25800	37970	47120	54540	7130	121510
Total weight	Kg	9520	11870	23300	29500	43910	54010	63190	83300	137160
